There is a printing mistake in the instruction; The 8th instruction is wrong; Our package not includes screw minute nut; We are sorry for any convenience being brought to you.
Total shaft length is 28 mm and its thread length is 15.4 mm, applicable for 9 – 13 mm (9/ 25 – 1/ 2 inches) thickness clock panel.
You can use the clock movement to repair, replace or make a clock, suitable for cross-stitch, three-dimensional embroidery, craft clock, frameless draw clock, etc..
Easy and simple design:
The component parts are easy to assemble together and the black metal hands can be painted with any color to match your clock.
Material: plastic and aluminum
Case size: approx. 55 x 55 x 16 mm (2.2 x 2.2 x 0.63 inches)
Hour hand length: total length is 216 mm/ 8.5 inch; Center hole to the tip is 203 mm/ 8.0 inch
Minute hand length: total length is 385 mm/ 15.2 inch; Center hole to the tip is 305 mm/ 12 inch
Power: 1.5V AA 1 x battery (not included)

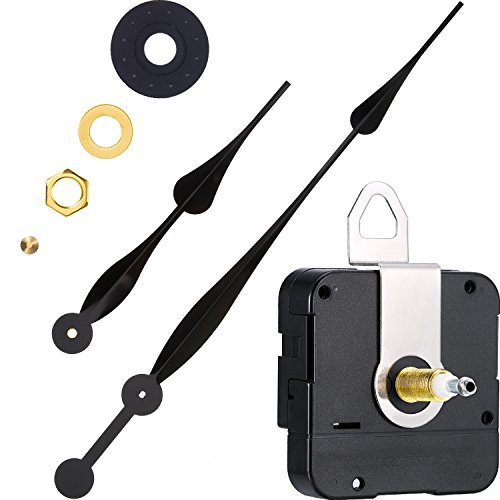

1 x Quartz clock movement
1 x Close nuts
1 x Minute hand
1 x Hour hand
1 x Plastic washer
1 x Brass washer
1 x Brass nut
1 x Metal hook
There are some clock parts made of aluminum, please do not install them with too much pressure or they will be bent.
- Clock movement: high torque clock movement with hook, long shaft, drive long clock hands (10 mm to 450 mm)
- Total shaft length: 28 mm (1-1/ 10 inches), thread length: 15.4 mm (3/ 5 inches), suitable for 9 – 13 mm (9/ 25 – 1/ 2 inches) thickness clock panel
- Size from the center of the hole to the tip: the hour hand is approx. 203 mm/ 8.0 inches long; The minute hand is about 305 mm/ 12 inches in length
- Good DIY clock supply: suitable for repairing, replacing the broken parts of a clock or serving as good handwork materials to make a clock by yourself
- Warm notice: there are some clock parts made of aluminum, please do not install them with too much pressure or they will be bent
