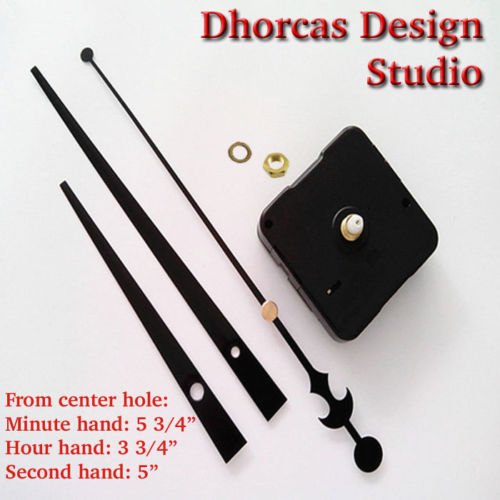

Brand New Best Quality 51628-S Quartz Clock Movement Mechanism DIY Replacement Repair Parts Kit 2/16″ Maximum Dial Thickness 3/16″ Threaded Shaft Motor 6″ Hands and Hanger (#03)


DETAILS: Motor

• Motor model: Quartz 51628-S
• Total shaft length is 1/2″
• Threaded shaft is 3/16″ for dials up to 2/16″ thick.
• Motor size: 2 2/16″ x 2 2/16″ x 5/8″ case thickness
• Threaded shaft diameter: 7mm/1/4″
• Motor type: Push-on-hands, does not require a nut to hold hands on the shaft, and the holes in the hands are round.
• Requires one “AA” battery (not incl.)
• Includes all mounting hardware; brass washer and hex nut.
• Continuous sweep motion, no stepping of gears, and ultra quiet.

DETAILS: Hands
• Light metal hands that can be painted any color… use a primer then color coat
• Hands can be cut down to a size using any household scissors
• Minute hand: From the center hole to tip: 5 1/2″
• Hour hand: From the center hole to tip: 3 3/4″
• Second hand: From the center hole to tip: 5″
• Both the hour and minute hands have a circular hole for the motor’s shaft, not ova; or rectangular

Product Features

  • Motor model: Quartz 51628-S Total shaft length is 1/2″
  • Threaded shaft is 3/16″ for dials up to 2/16″ thick, Threaded shaft diameter: 7mm/1/4″
  • Motor size: 2 2/16″ x 2 2/16″ x 5/8″ case thickness
  • Motor type: Push-on-hands, does not require a nut to hold hands on the shaft, and the holes in the hands are round & Requires one “AA” battery
  • Includes all mounting hardware; brass washer and hex nut. Continuous sweep motion, no stepping of gears, and ultra quiet.
